Inclinable OR 'C' Type Power Press

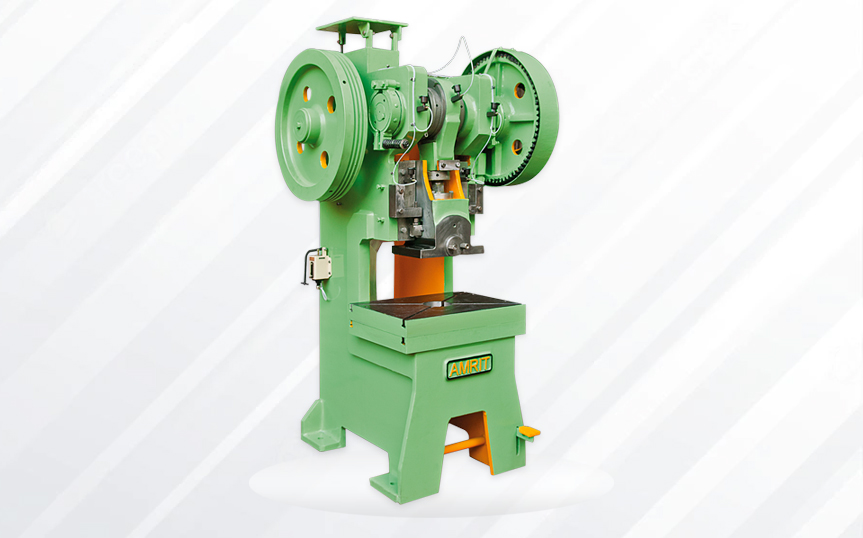

  • c-type power presses
  • heavy duty pneumatic c-type power press machine

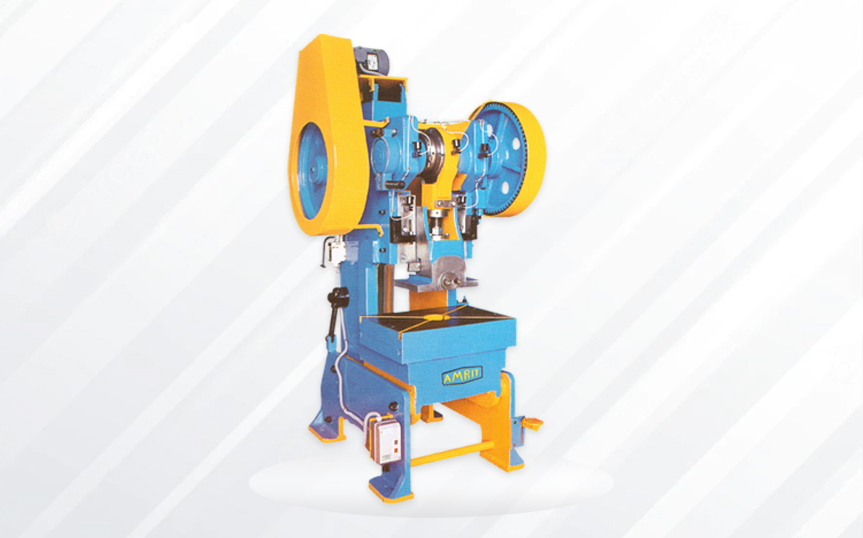

  • heavy duty c-type power press
  • pneumatic c-frame power press machine

Inclinable or 'C' Type Power Press - 5 to 250 Tons

From our extensive range of products, our clients can avail an optimum quality array of Heavy Duty Inclinable or C-Type Power Presss Machine is manufactured in sync with the set industry standards using superior grade raw materials that are sourced from the reputed vendors of the market. This Power Press is widely acclaimed owing to their impeccable finish, durable finish standards, high tensile strength and optimum performance.

Features :-
Important part is made from close graded casting
Main crank-shaft made from en steel
All the main parts are ground finished
Standard Accessories: Motor pulley, Stud Driver.
Optional Accessories: Electric Motor, R.F Switch, V-Belt

Technical Specification (Size in mm)
Model 5 Ton 10 Ton 20 Ton 30 Ton 50 Ton 75 Ton 100 Ton 150 Ton 200 Ton
Bed Size 280x355 310x435 355x565 410x615 510x720 565x820 640x910 720x1015 765x1100
Bed to Ram 180 230 270 310 335 385 455 565 600
Bolster Thickness 58 58 63 63 70 78 83 90 102
Crank Shaft Dia 65 75 85 100 120 135 170 185 204
Stroke Length 45 52 63 83 95 110 115 127 140
Gear Dia 355 455 560 610 660 760 910 1015 1220
Fly Wheel Dia 425 490 620 680 735 840 910 1065 1150
Punch Bore 25 25 28 32 39 45 51 56 63
Floor to Top of Bed 800 800 800 800 800 800 800 800 800
Strokes / Minute 70 70 65 60 60 55 55 50 45
Power Required HP / RPM 1/1440 15/1440 2/1440 3/1440 5/1440 7.5/1440 10/1440 15/1440 20/1440
Appox Weight In Kg 600 850 1350 1800 2550 4100 5200 7500 12000


“We also design & Manufacture presses as per Customer Requirement.”
