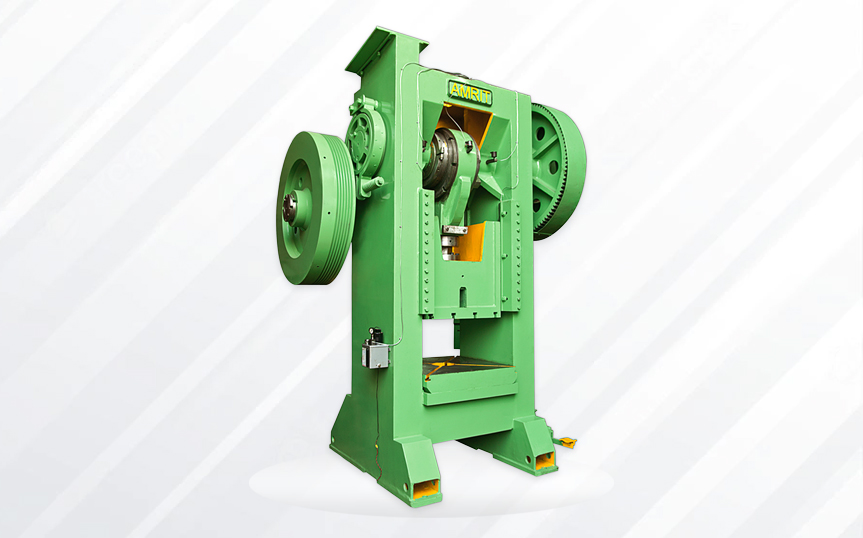

  • trimming power press

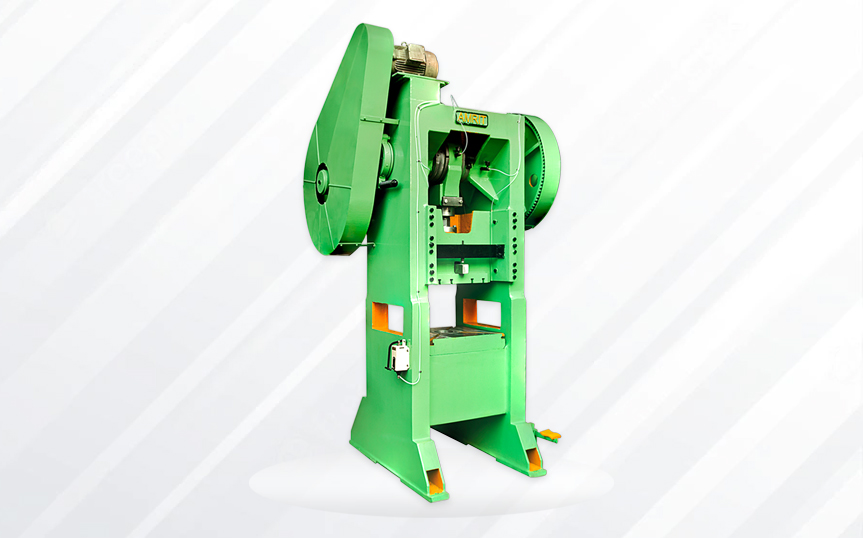

  • h frame power machine

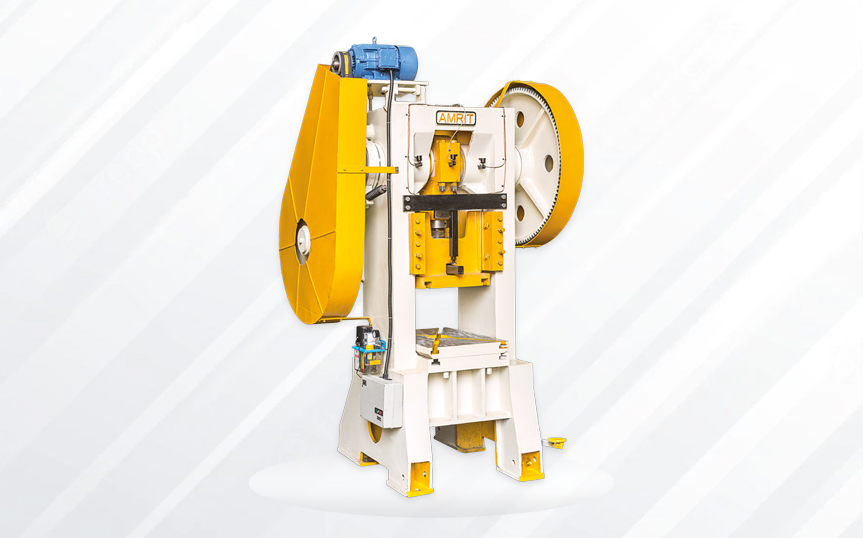

  • h frame crank press

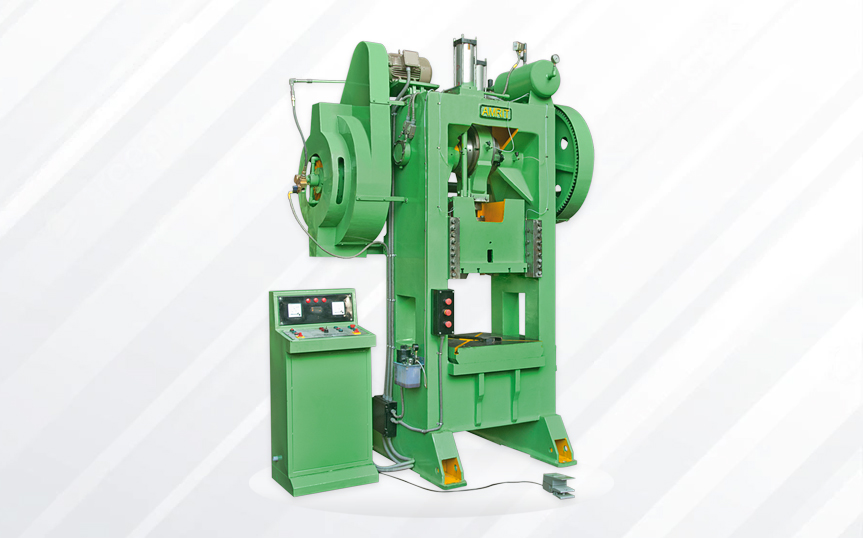

  • pneumatic h-frame power press
  • trimming power press
  • h frame power press machine
  • h frame crank press
  • pneumatic h-frame power press

H Frame Type Power Press / Pillar type Power Press

Sadhu Engineering Works are ISO 9001:2015 Certified Company, manufacturers and exporters of high quality heavy duty H-Frame Type Power Press / Pillar type Power Press in Ludhiana, Punjab India.

Technical Specification (Size in mm)
Model 10 Ton 20 Ton 30 Ton 50 Ton 75 Ton 100 Ton 150 Ton 200 Ton 250 Ton 300 Ton 400 Ton
Bed Size 306x365 355x410 410x460 460x510 522x575 586x640 640x690 765x820 865x920 915x915 1000x1000
Bed to Ram 230 270 310 335 385 455 565 600 612 765 815
Bolster Thickness 57 63 63 70 78 83 90 102 108 120 125
Crank Shaft Dia 75 85 100 120 135 170 185 204 230 254 286
Stroke Length 52 63 83 95 110 115 127 140 152 178 210
Gear Dia 455 560 610 660 760 910 1015 1220 1270 1320 1420
Fly Wheel Dia 535 665 765 841 920 1070 1148 1275 1326 1370 1475
Punch Bore 25 28 32 38 45 51 56 63 63 70 75
Floor to Top of Bed 800 800 800 800 800 800 800 800 800 800 800
Strokes / Minute 70 65 60 60 55 55 50 45 45 45 40
Power Required HP / RPM 1.5/1440 2/1440 3/1440 5/1440 7.5/1440 10/1440 15/1440 20/1440 25/1440 30/1440 40/1440
Appox Weight In Kg 800 1100 1550 1900 2850 3800 5300 8500 10000 13500 19000


“We also design & Manufacture presses as per Customer Requirement.”
